2018 Oppliger Sintesy 1616 S23 full optional

Oppliger brand automatic coupling machine

Sintesy 1616 S model – Size 1650x1650 mm

Year of construction 2018

Technical Data:

Length of the machine offered: 16.9 meters

•            Glue Group Speed:                      60 ÷ 150 m/min

•            Feeder Speed:                            1,000 ÷ 9,000 sheets/h*

•            Support material:        F – E – B – C s.f.& d.f. EE – EB – BC d.w.,laminil

•            Minimum thickness                              0.7 mm *

• Maximum thickness 10.2 mm*

•            Covering material:                      120 ÷ 500 gr/m2 *

•            Minimum format:                              480 x 480 mm

•            Maximum format:                            1,650 x 1,650 mm

•            Max. height of the incoming stack 1,700 mm (max. 2,000 kg)

Description and equipment

Oppliger Sintesy 1616 S³ Sheet-to-Sheet Laminating Line

2020 version including Industry 4.0 requirements

with S³ “Self Setting System”

SINTESY 1616 S³ automatic coupling line, composed as follows:

Sintesy 1616 S³ basic machine

-            TANGO 1616 S³ Laminating Machine

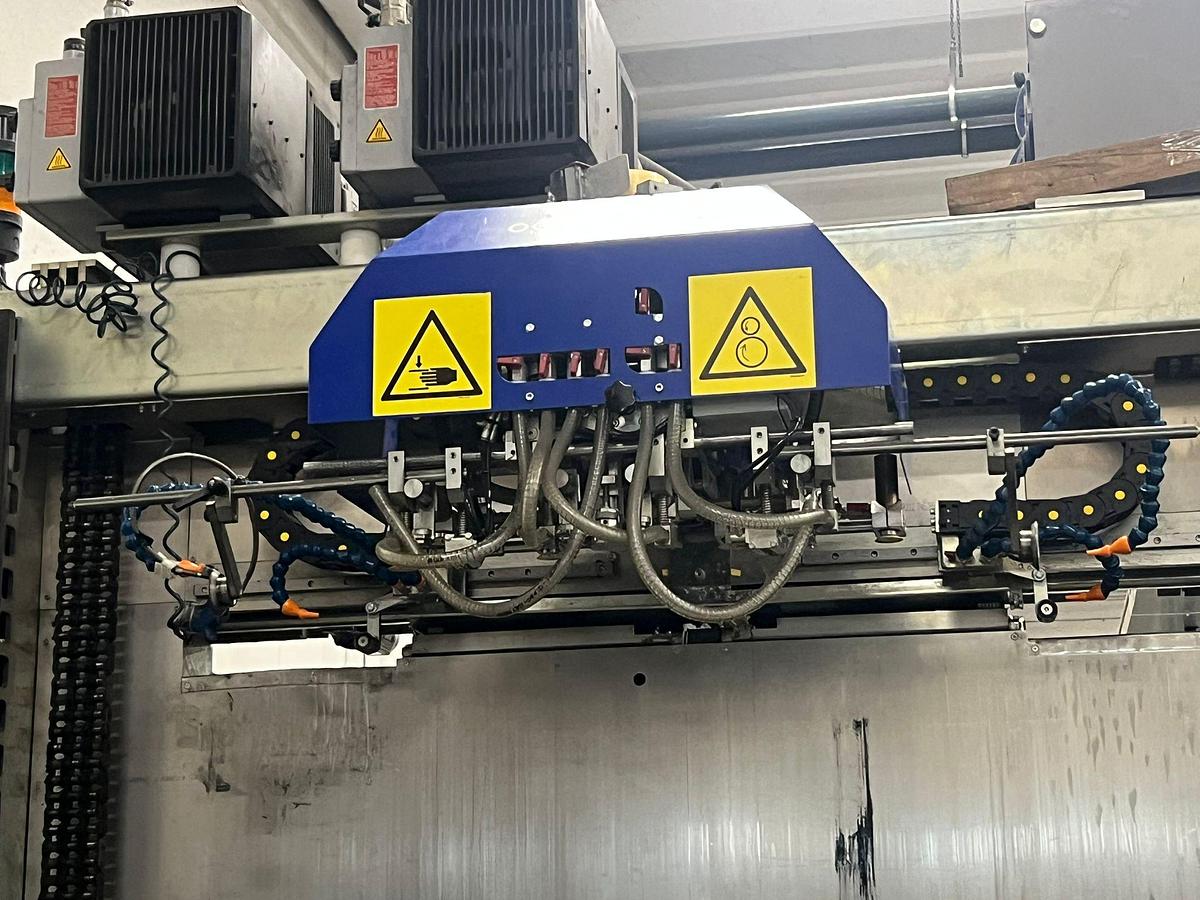

-              Sheet feeder with automatic suction head for covering material, S³ version

-             Descent bridge version S³

-              Suction belt feeder for backing material, S³ version

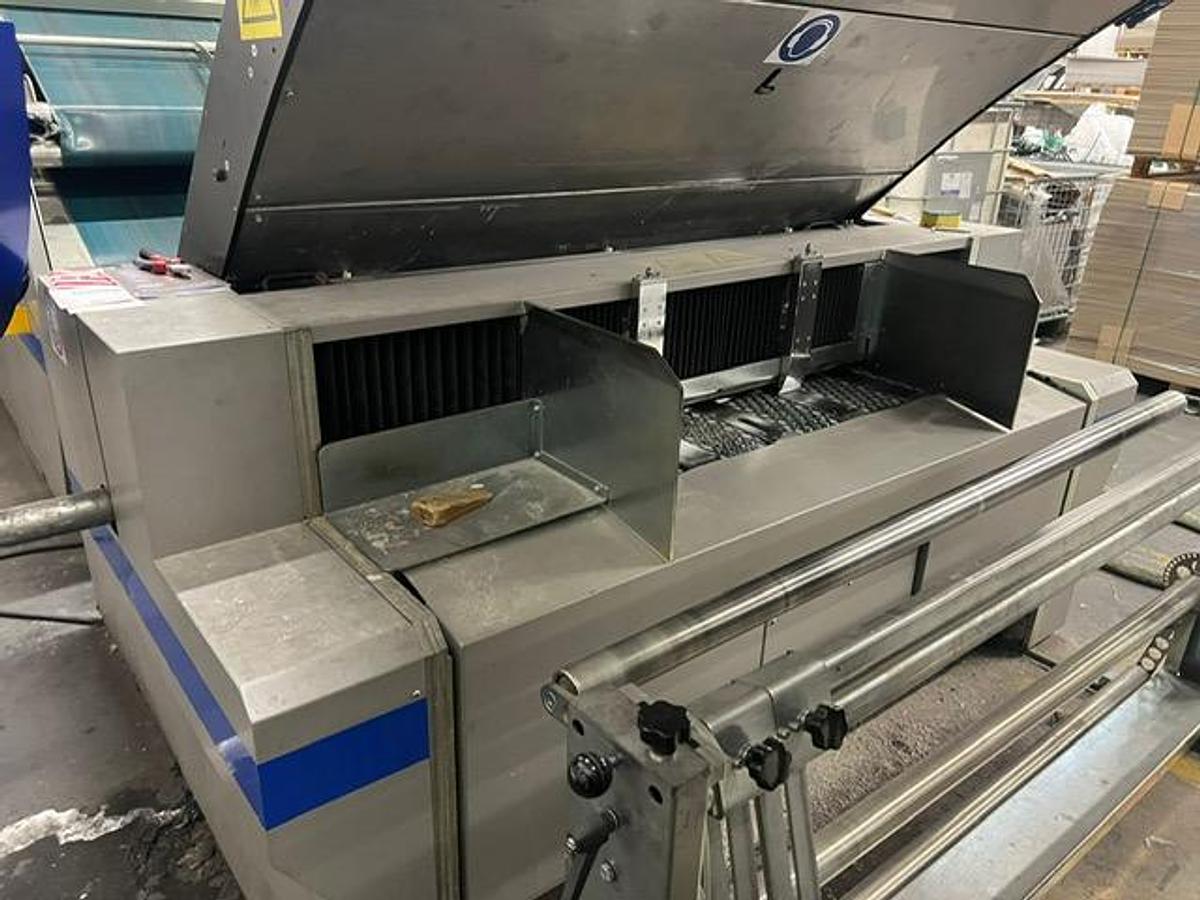

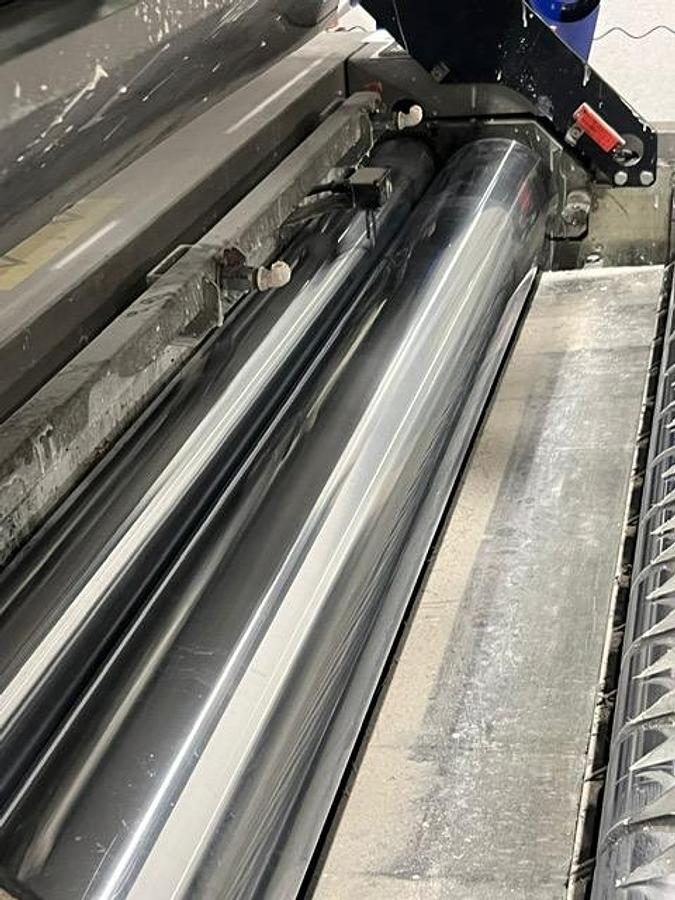

-             High-tech low consumption glue unit version S³

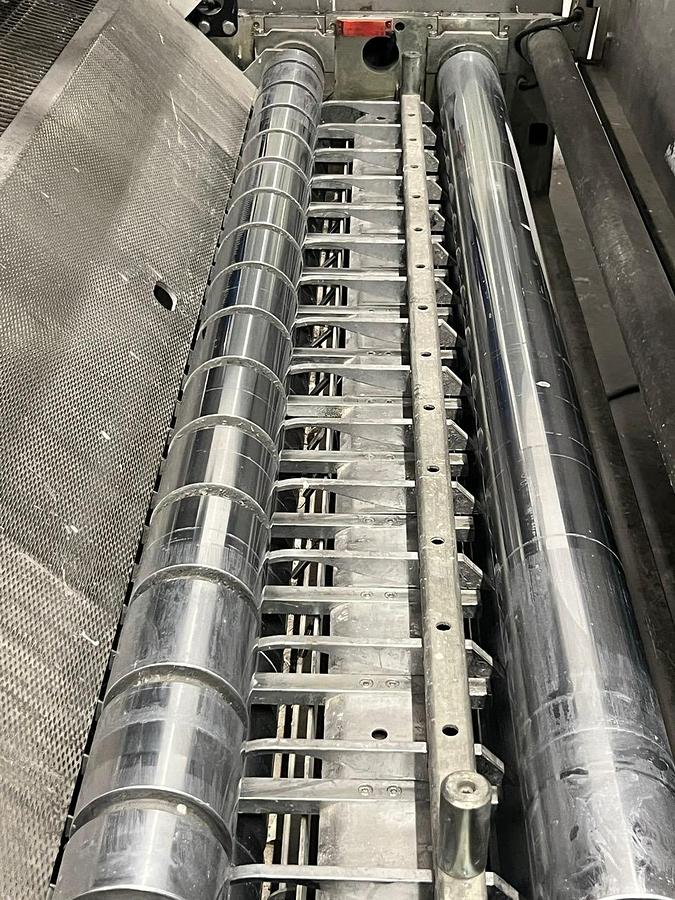

-             Top-of-the-range line coupler group, S³ version

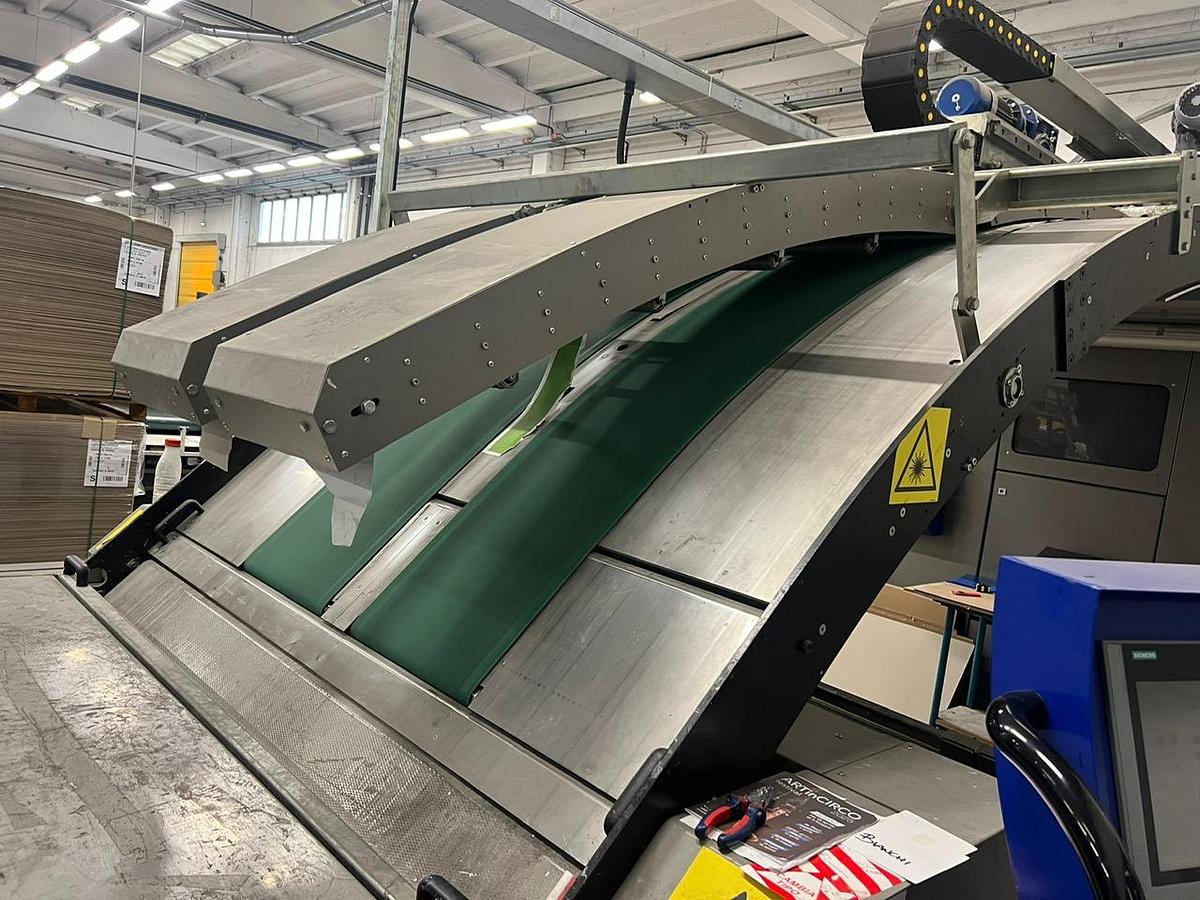

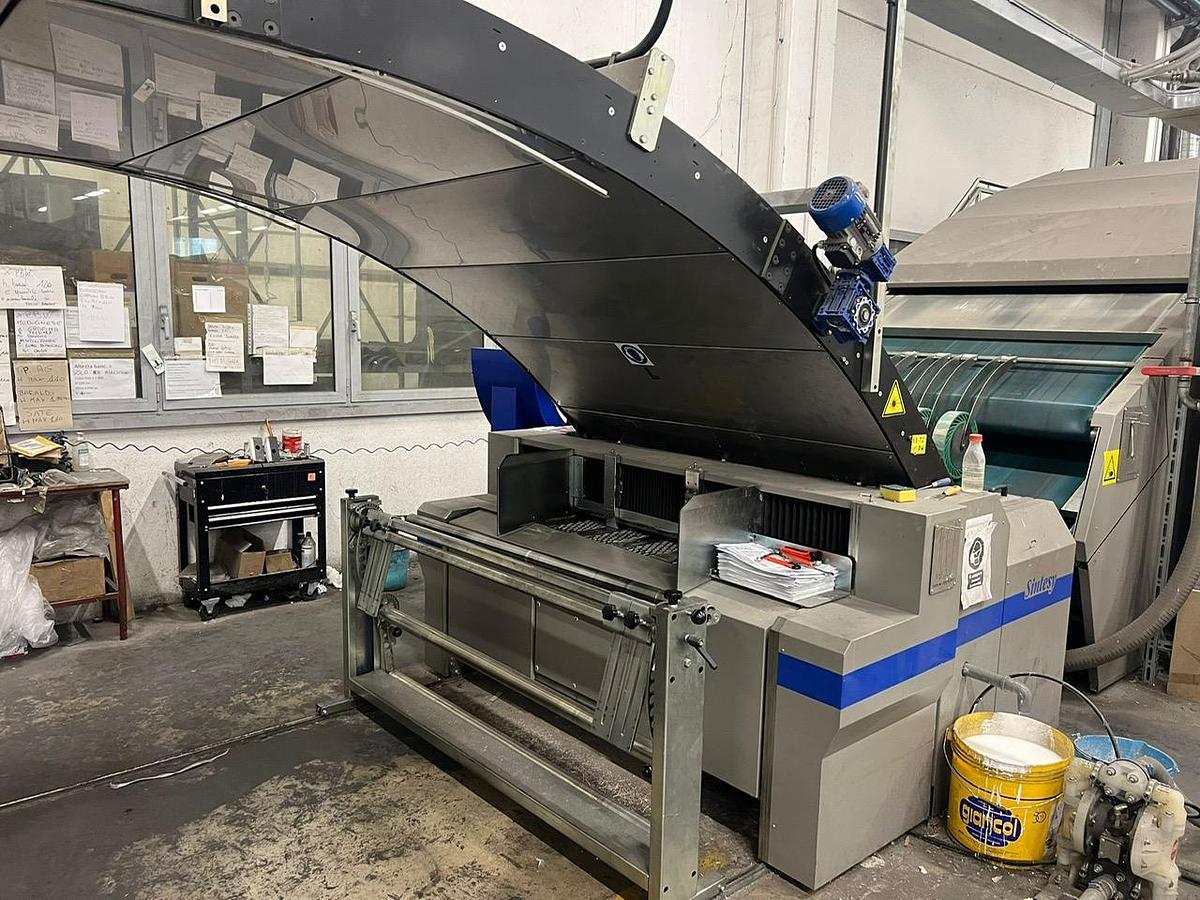

-             Uphill treadmill Slow S³ version

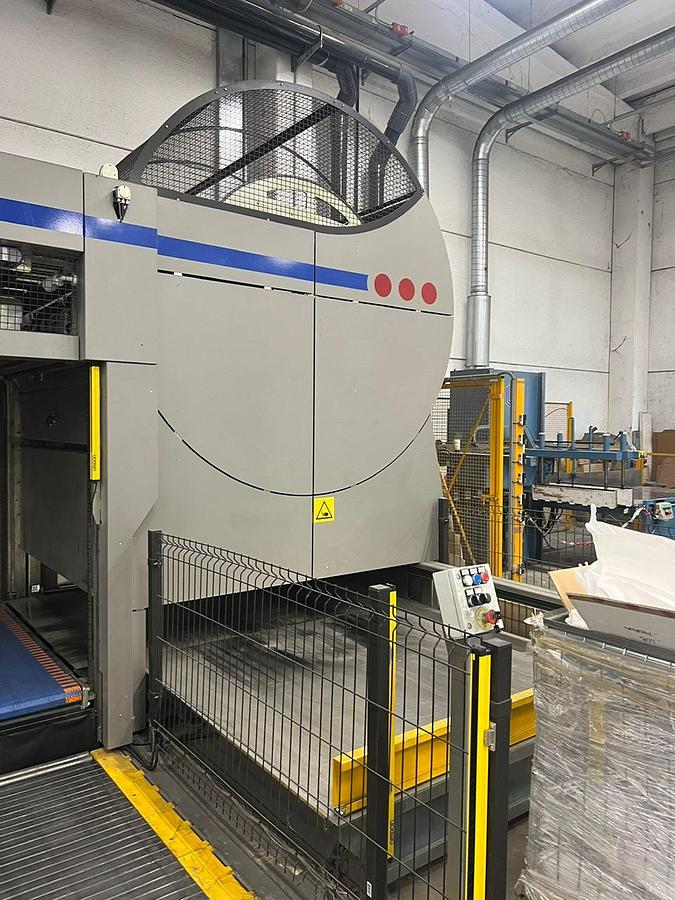

-             Bundle forming unit, bundle turning unit, stacker version S³

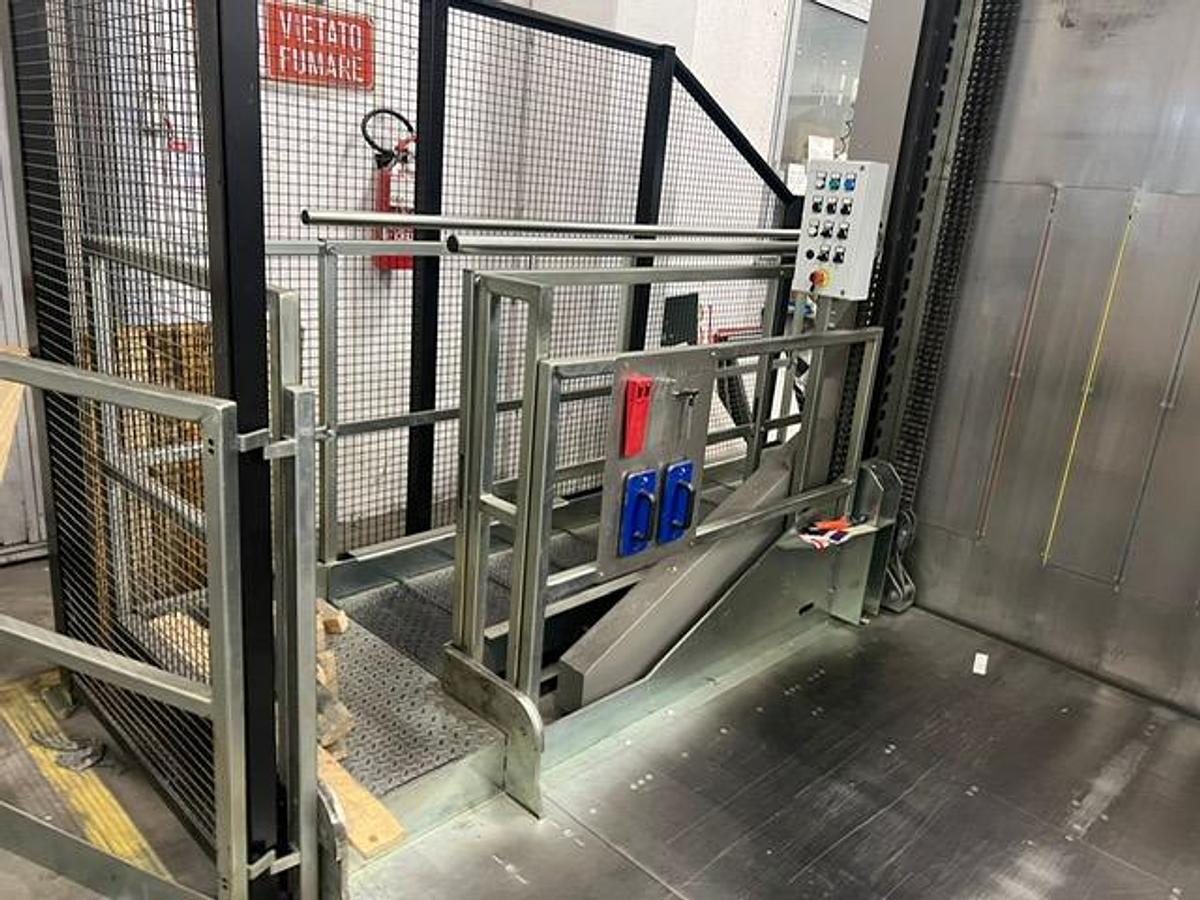

-            Place the pallet

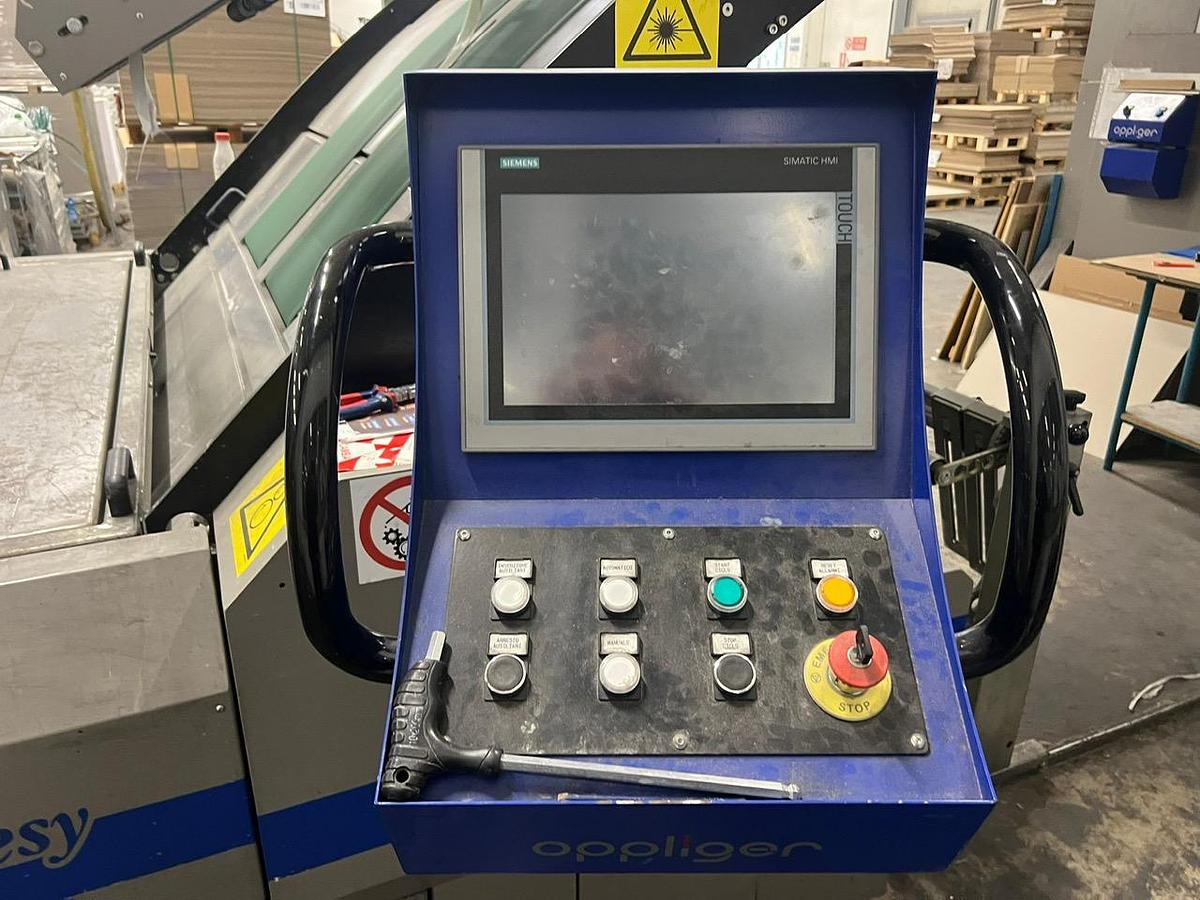

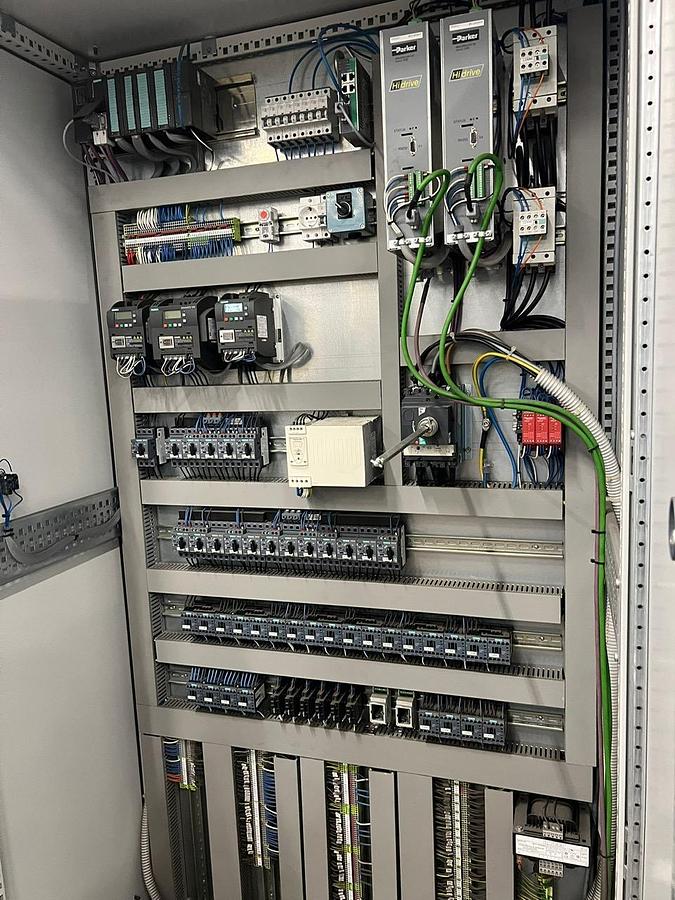

-            Touch Screen Siemens version S³

-             Non-Stop exit 600 mm

Optional extras included:

Optional Edge-to-Edge

Optional Teso-Teso - Minimum support weight 400g/m2 and minimum thickness 0.8mm

Optional Video Surveillance System with LED Monitor and 4 Cameras

Teleservice router

Optional 2STS System (Two Steps Tool System)

Machine with installation in the hole

Pallet change on exit
