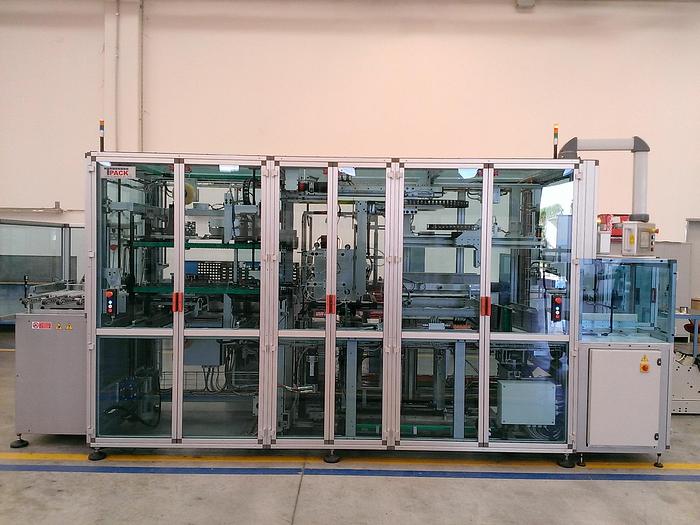

TPACK CV3 AND CV4

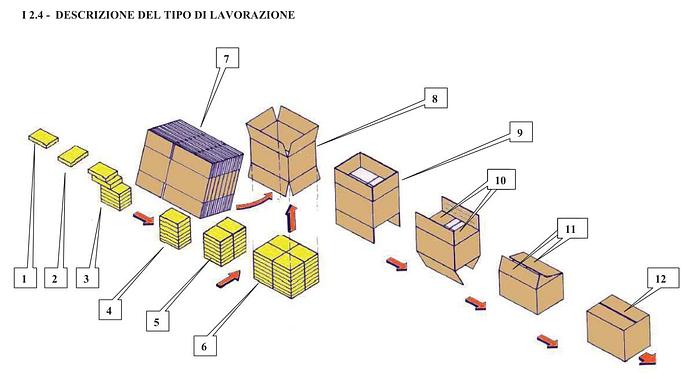

ESC * Porter conveyance for inserting bag stacks into machine. * Single or double row bag stack composition group. * Bag stack deposit group on stacker. * Two-stage pneumatic stacker group with rotation for stack thickness compensation. * Vertical bag stacker with pile pressure system. * Horizontal stack pusher assembly on stack insertion elevator on box. DESCRIPTION OF MACHINE ASSEMBLIES * Stack inserter on box. * American box storage. * Box picking and opening system. * Upper and lower flaps closing system. * Box advance and closing system by tape applicator. * 90-degree box outlet assembly. GROUPS ONLY ON CV4 MODEL * Pneumatic inserter on turntable assembly. * Porter conveyance for insertion on second bag stacks entrance. * Pneumatic shifter to put the bag stacks in a double row. 205 TECHNICAL SPECIFICATIONS * Machine carpentry made of painted steel. * Control machined aluminum components and treated with anodizing. * Control-machined steel components treated with phosphating or electrolytic galvanizing depending on their intended use. * All ball bearing slides treated with phosphating. * High-market commercial components. * Latest generation pneumatic components, the complete system is designed as required by current regulations. * Complete electrical panel with power protection, terminal blocks and wiring completely numbered as per diagram, design as per current regulations. * Advanced controller for machine management, integrated motion, EtherCAT field bus and Ethernet IP. * Touch screen operator panel.
