Palletizers for paper processing

Key features:

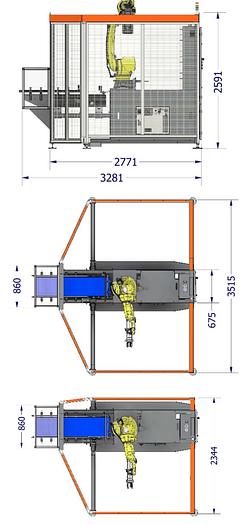

 Compact footprint.

 Layout tailored to the customer’s requirements.

 Low energy consumption.

 No special skills required of the operator.

 Maximum safety for the operator.

 No downtime.

 Quick format changeover for low production costs.

 Easily movable if production lines need to be reconfigured, offering maximum flexibility.

 The working area can accommodate pallets up to 1000x1200 mm

 Heights of up to 2200 mm are possible.

 Minimum box dimensions 200x100x100 mm, maximum 600x400x400 mm.

 Maximum load capacity 20 kg, 35 kg or as required.

 Maximum speed up to 15 cycles per minute, depending on box size and gripper type.

 With or without an inter-layer magazine (to be specified when ordering).

 Painted steel structural components.

 CNC-machined aluminium components treated with anodising.

 Steel components machined using CNC and treated to prevent corrosion.

 High-end commercial components.

 SMC pneumatic components; circuit designed in accordance with current regulations.

 Electrical control cabinet complete with safety PLC, system control PLC, 10” touchscreen panel PC, power protection, terminal blocks and wiring fully numbered as per the diagram, all in accordance with current regulations.

 Certified safety systems to protect the robot’s two working areas.

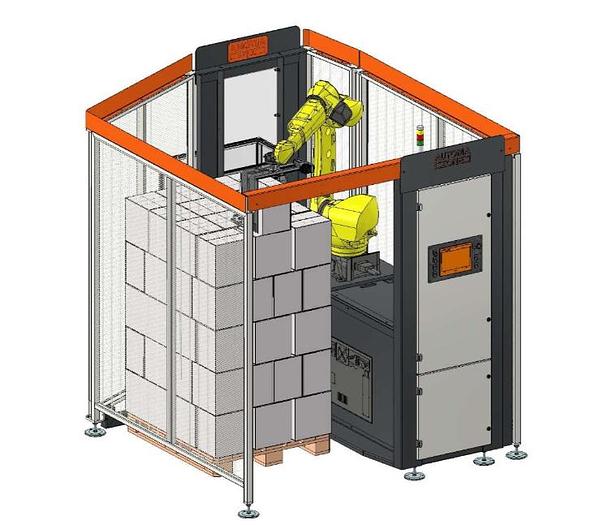

 6-axis anthropomorphic robot complete with power control, touchscreen pendant and certified programmable safety system.

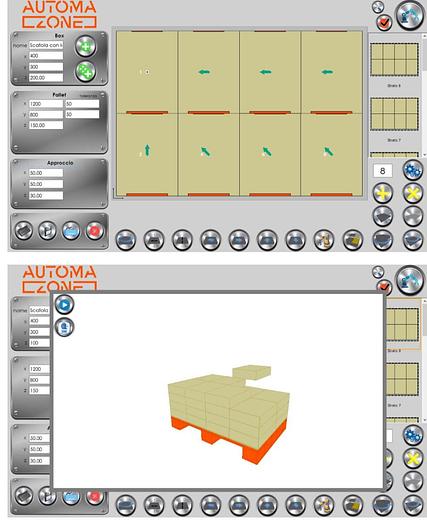

 Comprehensive software for pallet design and management of the entire system.

 IoT gateway module for interconnection with the company network and direct transmission/reception of all machine production data via the standard OPC-UA protocol, with a remote management function for remote support.

 Bespoke logistics systems.
